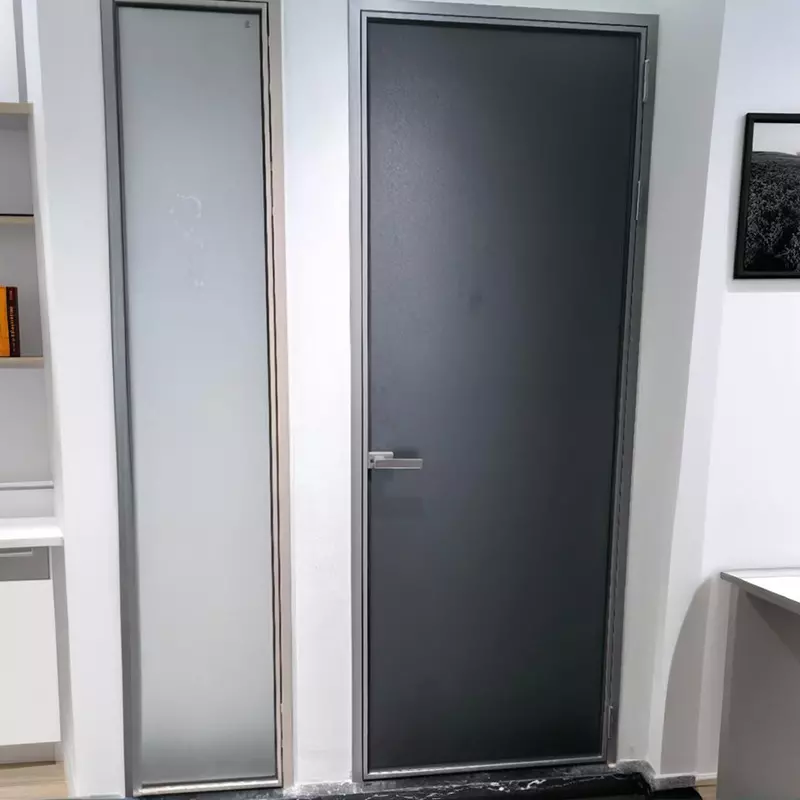

Extremely narrow swing door | Minimalist Design for Modern Spaces
Model Number: JD-NSD-2024
Material: Aerospace-grade aluminum alloy / Stainless steel (optional)
Surface Finish: Powder-coated (Matte/Glossy), Anodized, or Wood-grain texture
Color Options: Black, White, Champagne, Silver, Custom RAL colors
Thickness: 20mm / 25mm (Ultra-slim profile)
Width Range: 600mm–900mm (Single leaf), 1200mm–1800mm (Double leaf)
Fire Rating: A2 (Non-combustible core optional)
Certifications: ISO 9001, CE, ANSI/BHMA A156.30

Key Features
✅ Space-Saving Design

Frame width as narrow as 35mm, ideal for tight spaces without compromising stability.

✅ Premium Durability

High-strength aluminum alloy with corrosion resistance (salt spray tested 1000+ hours).

✅ Smooth & Silent Operation

German-made hinges with hydraulic damping (200,000+ cycles tested).

✅ Security & Privacy

Multi-point locking system (Euro Cylinder) + optional fingerprint/electronic lock.

✅ Thermal & Sound Insulation

Optional polyurethane foam core (UP to 28dB noise reduction).

✅ Easy Installation

Pre-drilled holes and adjustable frame for fast fitting (compatible with most wall types).

Technical Specifications
Parameter    Details
Opening Angle    90°–180° (adjustable hinges)
Weight Capacity    Up to 80kg per leaf
Glass Option    5–8mm tempered glass (frosted/tinted)
Wind Resistance    Grade 9 (up to 120km/h winds)
Warranty    10 years on frame, 2 years on hardware
Applications
✔️ Luxury apartments & hotels
✔️ Office partitions & glass doors
✔️ Retail stores & showrooms
✔️ Hospitals & cleanrooms (hygienic design)
