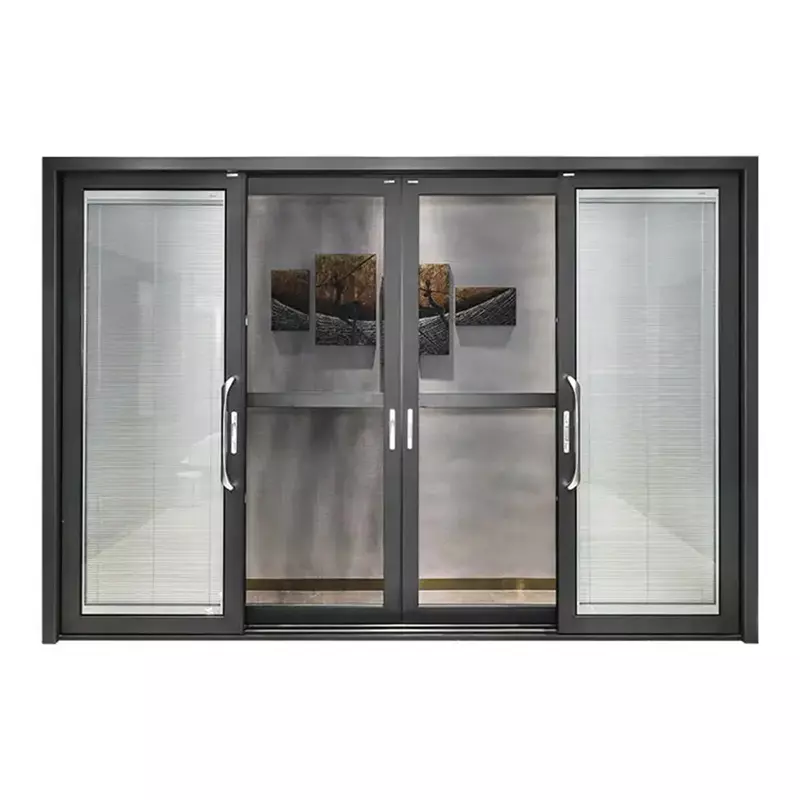

Product Overview
Yuxiang heavy-duty sliding doors are specially designed for high-intensity usage scenarios such as industrial plants, logistics warehouses, commercial complexes, and transportation hubs. They integrate super load-bearing capacity, safety protection, energy conservation, sound insulation, and intelligent control, meeting the demands of various harsh environments.

Product parameters
Project technical parameters
Material: Aviation-grade aluminum alloy (6063-T5, wall thickness 2.0-4.0mm is optional)
Glass configuration: 6-12mm tempered glass /LOW-E glass/explosion-proof glass (single-layer, double-layer, triple-pane and double-chamber are optional)
The hardware system is equipped with German Renas heavy-duty pulleys and tracks (with a load capacity of 1000kg), as well as a multi-point locking anti-theft system
Opening methods: Manual/electric (optional APP control, radar sensing, fingerprint recognition)
Wind pressure resistance grade: National Standard 9 (≥5000Pa)
Sound insulation performance: 42dB (three-glass configuration)
The thermal insulation coefficient K value is ≤2.0 W/(㎡·K)
The fire resistance rating can be selected as Grade A fire resistance (1.5 hours)
The maximum size of a single panel is 6m in width and 3m in height (customized non-standard sizes available).
Surface treatment: fluorocarbon spraying (weathering resistance for 30 years), wood grain transfer printing, anodizing (RAL International color Chart 100+ available)

Detailed Explanation of Core Advantages
Military-grade load-bearing structure
Thickened profiles: The main load-bearing parts are made of 4mm thick aluminum alloy, and the crossbeam is equipped with a reinforced steel core inside.

German track system: Double-track groove design + self-cleaning rollers ensure that the 10-ton class does not deform after repeated pushing and pulling.

Dynamic test certification: Passed 1 million push-pull fatigue tests (far exceeding the national standard requirement of 200,000 times).

2. Comprehensive safety protection
Anti-theft design: Hidden multi-point lock tongue + anti-saw stainless steel lock buckle, in compliance with the EN1627-1 anti-theft standard.

Emergency escape: The electric door is equipped with a standard manual opening function upon power failure, with a thrust force of no more than 50N (a mandatory requirement for fire protection).

Special glass: Bulletproof glass (UL752 Level 3) or laminated explosion-proof glass (EN356 P5A) can be matched.

3. Energy conservation and environmental protection performance
Broken bridge thermal insulation system: 24mm wide PA66 thermal insulation strip + automotive-grade EPDM seal, reducing energy consumption by 40%.

Air tightness test: Reaching national standard level 8 (≤1.5m³/(m·h) @100Pa), effectively blocking dust.

4. Intelligent control system
Multiple driving schemes:

▶ Basic model: Remote control switch

▶ Flagship Model: Controlled by mobile APP (supports multi-door linkage)

▶ Customized version: Facial recognition/license plate recognition access

Safety protection: Infrared sensing anti-pinch + rebound upon obstruction (adjustable sensitivity).

Application scenario scheme
Scene 1: Logistics and Warehousing center

Recommended configuration: 4m wide electric door + radar sensor + anti-collision guardrail

Solve the problem: Enhance the efficiency of forklift passage and reduce collision accidents

Scene 2: High-speed railway platform

Recommended configuration: Wind pressure-resistant door body of level 9 +LOW-E glass + intelligent interlocking control

Solution to the problem: Resist through drafts and reduce the energy consumption of air conditioners

Scene 3: Food factory

Recommended configuration: Fully sealed dust-proof door + antibacterial coated profiles

Solve the problem: Comply with GMP cleanroom standards
